第一印象

Diagram Designer的工作区-第一印象.

指令以及指令器

任意能通过菜单，工具条或者快捷菜单执行的用户操作，均可由一条相应的图表指令代替。图表指令与用户界面无关，其由一指令器维护，该指令器也扮演Nevron用户界面与图表指令之间的桥梁角色。

指令栏管理

这是一个有着时尚的外观的嵌入栏管理器，直观的展现了Nevron Diagram for .NET的各项功能。

图形库浏览器

图形库浏览器简化了图形库的管理。其不但能显示多个图形库，还能帮助用户创建新的图形库以及编辑现有图形库。

属性浏览器

属性浏览器能帮助用户迅速的编辑文件、图层、选项或者视图的属性。

状态栏

状态栏是一个非常有用的控件，其能显示一个视图当前状态的相关重要信息。

First Look

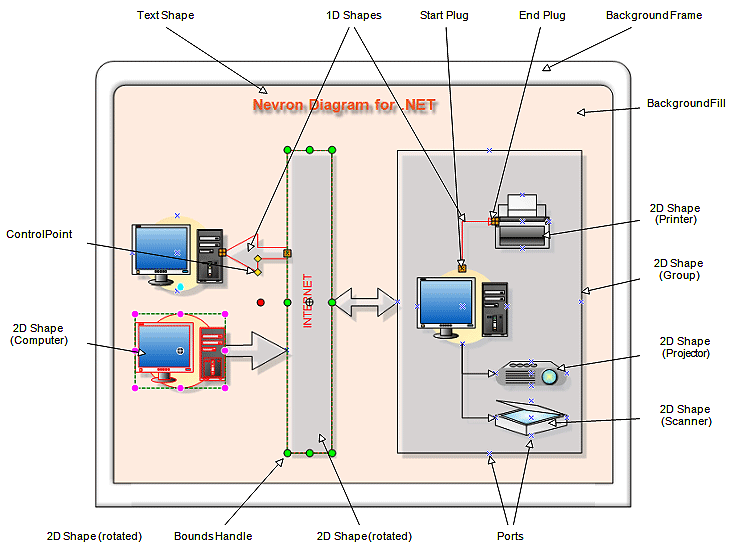

Diagram Designer Working Area - First Look

Commands and Commander
Any user action, which can be executed from a menu, toolbar or context menu is represented by a diagram command. Diagram commands are UI independent. Diagram commands are maintained by a commander, which also serves as bridge between Nevron UI and diagram commands.

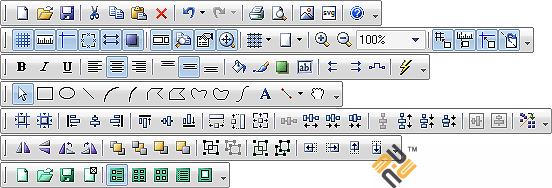

Command Bars Manager
This is a modern look and feel docking bars manager, which visually exposes the power of the Nevron Diagram for .NET

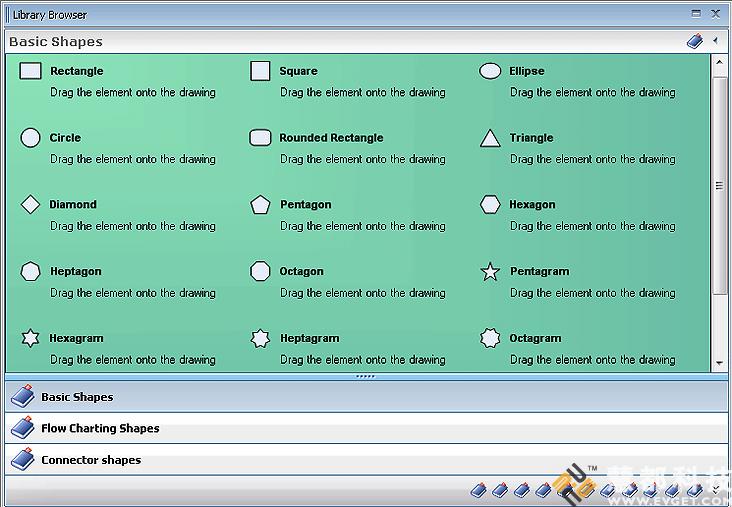

Library Browser
The library browser facilitates the library management. The library browser can display multiple libraries as well as help you create new libraries and edit the currently existing ones.

Property Browser
The property browser can help you instantly edit the properties of the document, active layer, selection or the view.

Status bar
The status bar is a useful control, which displays important information about the current state of a view.
